ATIPS-08 Power Sequencer
Product Overview
The ATIPS-08 Power Sequencer is designed for professional audio systems, DJ setups, studios, broadcast installations, computer systems, and other electrical equipment that requires controlled sequential power management.
It automatically switches connected equipment ON one channel at a time from CH1 to CH8, helping reduce sudden inrush current and minimizing electrical stress on connected devices. During shutdown, the sequence operates in reverse order, from CH8 back to CH1, for safer and more organized system power control.
Key Features
- 8-Channel Sequential Power Control
- Wide Input Voltage: 90V–260V AC
- 30A High-Quality Relay
- Sequential power ON from CH1 → CH8
- Reverse sequential shutdown from CH8 → CH1
- Helps reduce inrush current impact
- Helps protect professional audio equipment from sudden current surges
- Digital Voltage Display
- Individual CH1–CH8 status indicators
- USB output: 5V / 1000mA
- Front-panel auxiliary AC output for maintenance and testing
- Multi-function output sockets suitable for different plug types
- External dry-contact control support
- Chip-controlled circuit design for stable and reliable operation
- Suitable for rack-mounted professional systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | ATIPS-08 |
| Product Type | Power Supply Sequencer |
| Number of Controlled Channels | 8 Channels |
| Input Voltage | AC 90V–260V |
| Relay Capacity | 30A |
| Power-On Sequence | CH1 → CH2 → CH3 → CH4 → CH5 → CH6 → CH7 → CH8 |
| Power-Off Sequence | CH8 → CH7 → CH6 → CH5 → CH4 → CH3 → CH2 → CH1 |
| Voltage Monitoring | Digital Voltage Display |
| Channel Indicators | CH1–CH8 Status Indicators |
| USB Output | 5V / 1000mA |
| Rear Outputs | 8 Sequential Power Output Sockets |
| Front AC Output | Auxiliary / Straight-Through AC Output |
| External Control | Dry Contact Switch Support |
| Socket Type | Multi-Function Socket |
| Control System | Chip-Controlled Sequential Circuit |
How It Works
When the ATIPS-08 is switched on, connected equipment receives power progressively from Channel 1 through Channel 8. This controlled sequence reduces the sudden current demand that can occur when several high-power devices are switched on simultaneously.
When the unit is switched off, the shutdown sequence runs in reverse, helping provide an orderly shutdown of the connected system.
For professional audio installations, lower-power source and processing equipment can typically be connected toward the earlier channels, while higher-power equipment can be connected toward the later channels according to the system’s power requirements.

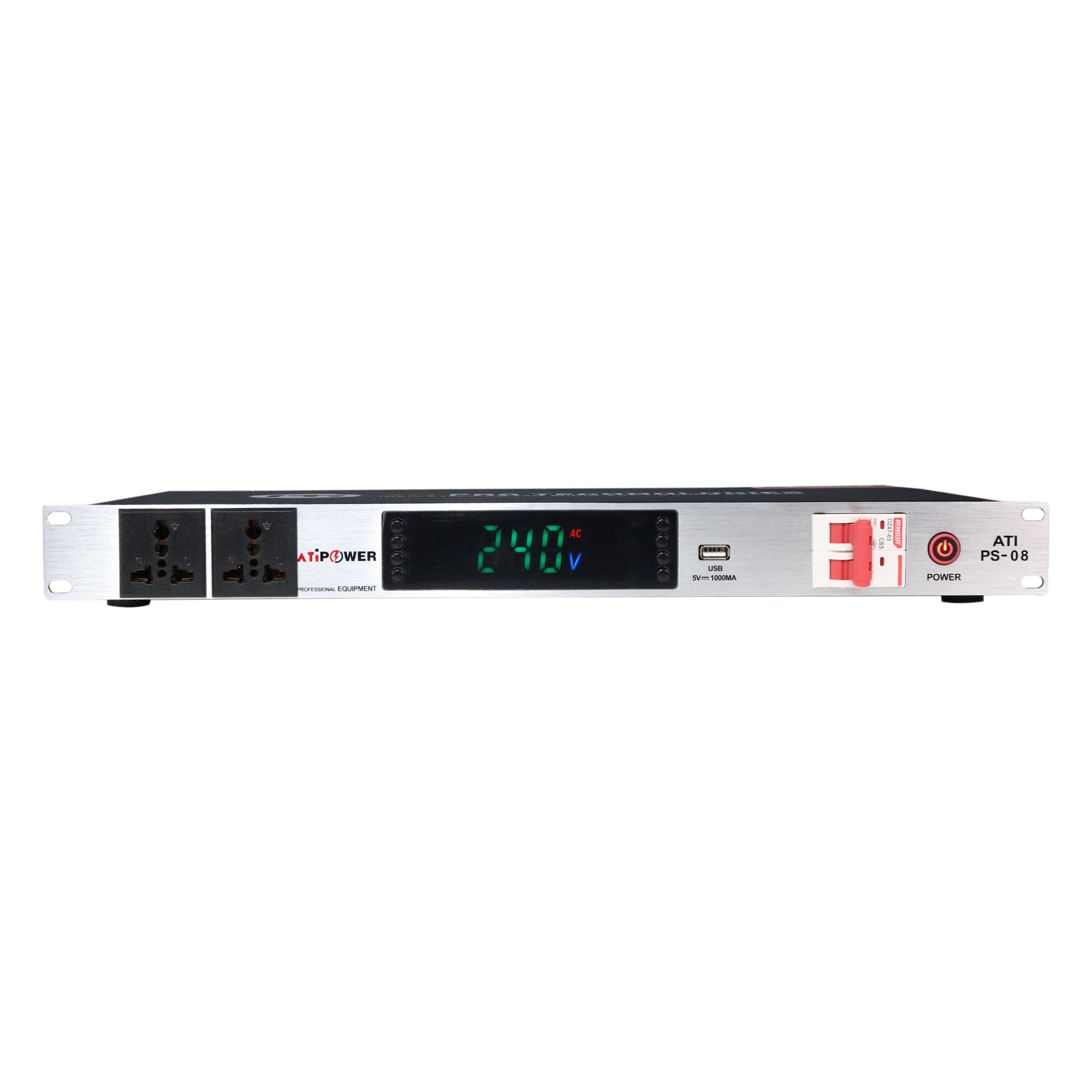

Front Panel Functions
Channel Indicators: Display the operating status of the corresponding output channels.
Digital Voltage Display: Provides real-time monitoring of the incoming supply voltage.
USB Port: Provides a 5V / 1000mA output for compatible low-power devices.
Auxiliary AC Output: Provides convenient direct AC access for servicing, testing, or temporary equipment connection.
Power Control: Controls the sequencer’s startup and shutdown operation.

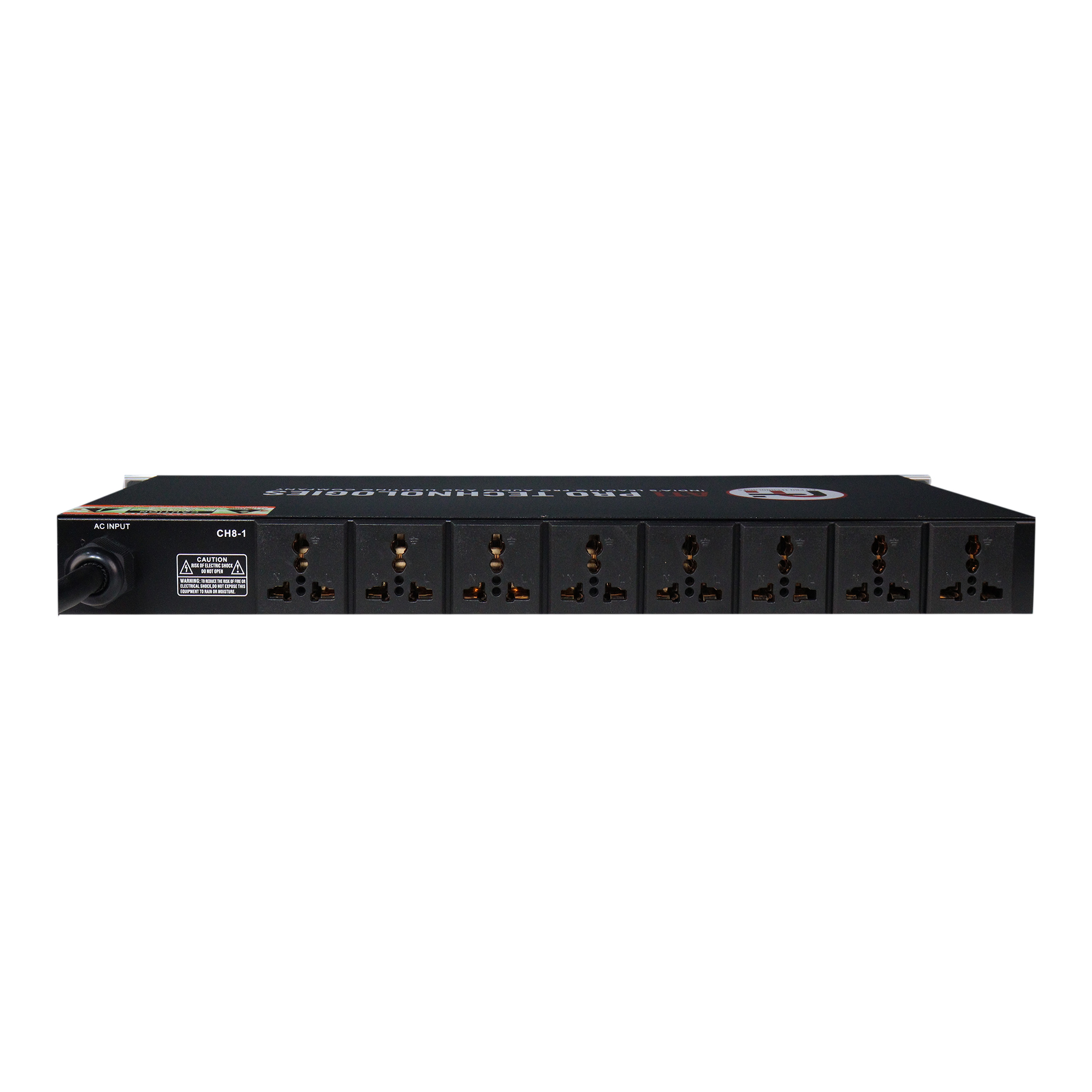

Rear Panel Functions
The rear panel features 8 controlled output sockets for connecting system equipment.
It also provides the main AC input connection and an external dry-contact control interface, allowing the sequencer to be operated through a compatible remote switch arrangement.
Applications
The ATIPS-08 is suitable for:
- Professional DJ systems
- Power amplifiers and audio racks
- PA and sound reinforcement systems
- Recording studios
- Clubs and event venues
- Auditoriums
- Broadcast systems
- Computer and AV installations
- Conference and commercial audio systems
